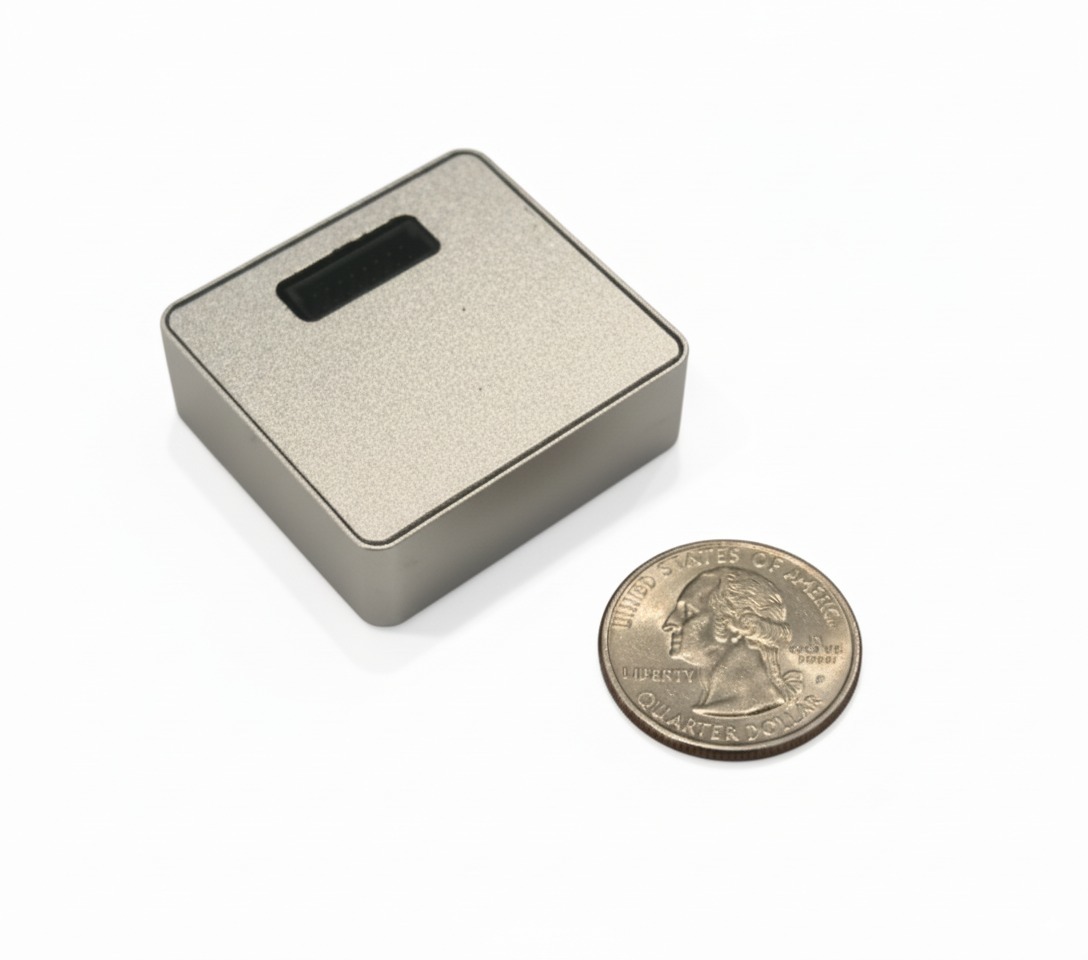

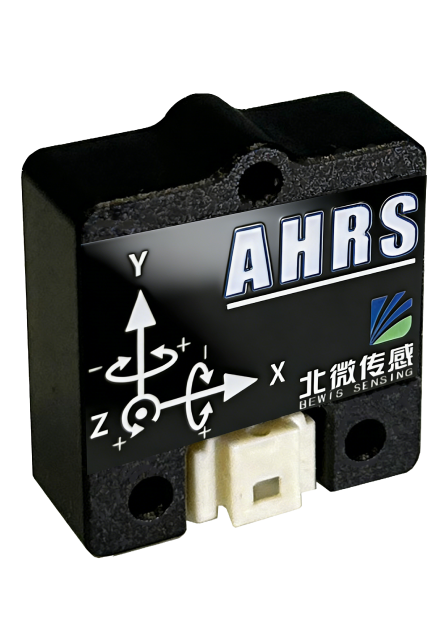

DMC630 Small Size High Precision Attitude Heading Reference System

  • DMC630 Small Size High Precision Attitude Heading Reference System
Marca BWSENSING
Número do modelo DMC630
Quantidade de ordem mínima 1
Preço contact us
Tempo de entrega 10 dias úteis
Termos de pagamento T/t, l/c

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Deixe um recado
Descrição de produto

DMC630 high-precision heading reference system adopts industrial grade microcontroller with high reliability and strong anti-interference ability and high-precision magnetic sensor and driver chip. It also integrates the fast calibration algorithm and anti-interference algorithm independently developed by BeiMicro Sensing, so that it can move in space at will and carry out magnetic field calibration to resist short-time magnetic interference. This product uses a three-axis accelerometer and gyroscope to compensate for the tilt angle, making it able to provide accurate heading data even in extremely harsh environments.

This product comes with IAP upgrade function. Subsequent functions and interfaces will be upgraded through IAP after the programme is updated. It can be customized according to customers' requirements, and can be very conveniently and quickly integrated into various products with electronic compass functions.

Azimuth Angle







 Measuring range   0~360°
  Accuracy   ≤ 1° (RMS) after spatial calibration
  Resolution   0.1°
  Repeatability   0.5° (RMS)

Pitch angle







 Measuring range   ±90°
  Accuracy   ≤0.2° (RMS)
  Resolution   0.05° (RMS)
  Repeatability   0.05° (RMS)
Roll angle Measuring range   ±180°
  Accuracy   ≤0.2° (RMS)
  Resolution   0.05° (RMS)
  Repeatability   0.05° (RMS)
Range Accelerometer range   ±4g
  Gyroscope range   ±500°/s
Environments Baud rate   9600~460800 (default 9600)
User calibration procedure Calibration   16-point calibration
Output frequency Raw data mode   Up to 1000HZ
  Solution mode   Up to 500HZ
Parameter Accelerometer Gyroscope Magnetometer
Range ±8 g ±500 (optional ±1000) °/s ±2 Gs
Noise Density 60 µg/√Hz 5 mdps/√Hz 1 mGauss/√Hz
Bandwidth 539 Hz 539 Hz -
Bias Stability (10s Averaging) 0.2 mg 16 °/h -
Bias Stability (Allan Variance) 40 µg 4 °/h -

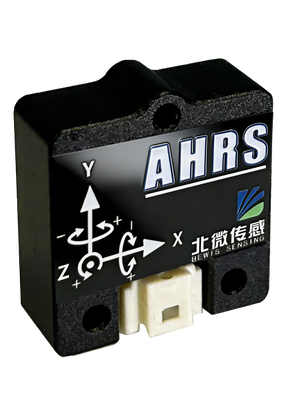

DMC630 Small Size High Precision Attitude Heading Reference System 0
