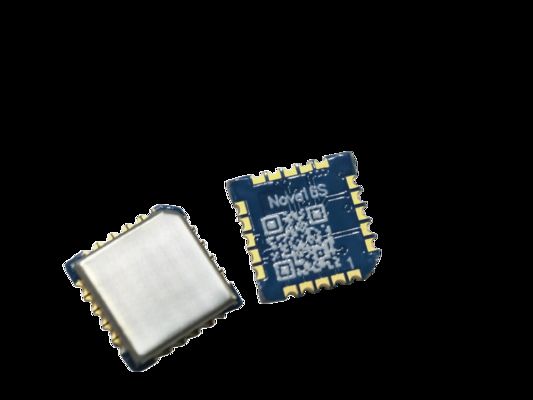

DMC640 Small Size High-Cost Effective AHRS

  • DMC640 Small Size High-Cost Effective AHRS
Marca BWSENSING
Número do modelo DMC640
Quantidade de ordem mínima 1
Preço contact us
Tempo de entrega 10 dias úteis
Termos de pagamento T/t, l/c

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Deixe um recado
Descrição de produto

The DMC640 high-precision attitude and heading reference system employs industrial-grade microcontrollers renowned for their reliability and robust interference resistance, alongside high-precision magnetic sensors and driver chips. It integrates BWSENSING's proprietary rapid calibration algorithm and anti-interference algorithm, enabling spatial manoeuvring during magnetic field calibration while resisting transient magnetic disturbances. This product employs a three-axis accelerometer and three-axis gyroscope to compensate for tilt angles, ensuring accurate heading data even in extremely harsh environments.



Featuring IAP upgrade capability, subsequent functionalities and interfaces will be delivered via IAP updates following programme revisions. Customisable to client requirements, it facilitates the swift and straightforward integration of attitude and heading reference system functionality into diverse products.



Power voltage 3.3V DC
Working current ＜150mA
Operating temperature -40℃~+85℃
DMC640 Small Size High-Cost Effective AHRS 0Storage temperature -55℃~+100℃
  Accelerometer   Gyroscope
Range ±8g   ±400°/s ±1000°/s
Noise density 200 µg/√Hz   1.5mdps/√Hz 5 mdps/√Hz
Bandwidth 100Hz   100Hz

Zero bias stability

(ALLEN)

 0.15ug   3 °/h
Environment Baud Rate   9600–921600 (default 115200)
User Calibration Procedure Calibration Method   Rapid calibration

DMC640 Small Size High-Cost Effective AHRS 1
